Comes with 50 mtr throw Range , Primary Motor 10hp 2800 rpm . Water pump, 3hp high pressure multi stage pump, water tank 1000ltr or as per requirement, SS-304 Mist Nozzle , wheel mounted
TECHNICAL SPECIFICATION:-
|
MODEL NO |
ECS- 50 (AUTO ) |
|
RANGE |
45-50 MTR |
|
BRAND |
EMPOWER |
|
MOTOR |
10 HP Crompton / Kirloskar
/ Havells ( 2800 RPM ) |
|
RPM |
2800 |
|
TYPE |
Auto Swing |
|
WATER TANK |
1000 LTR ( As Per Requirement) |
|
SHEET THIKNESS |
2.5 MM |
|
TANK SIZE |
1000 LITRE |
|
WATER PUMP MOTOR |
3 HP ( CRI / LUBI / Algo MAKE ) |
|
PUMP MOTOR CONNECTION |
3 PHASE |
|
ELECTRIC COMPONENTS |
SCHNEIDER OR L&T MAKE |
|
NOZZEL |
BRASS (24-NOS) |
|
FAN BLADE |
28” INCHI ( 8 BLADE ) ALUMINIUM |
|
CONTROL
PANEL |
IP-65 |
|
VOLTAGE PROTECTION |
BY PHASE PREVENTER |
|
ROTATION |
270 DEGREE |
|
TROLLEY MOUNTED |
TOEING ATTACHMENT |
|
BLOWER CAPACITY |
40000 M3/HR |
|
TILTING ANGLE |
60-DEGREE |
|
ELECTRIC POWER SUPPLY |
440V |
|
ISOLATION VALVES |
BALL & GLOBE VALVE |
|
TILTING MECHANISM |
MECHANICAL |
|
HOSE DETAILS |
OIL RESISTANCE SYNTHETIC RUBBER |
|
WEIGHT OF
MACHINE |
465-KG APPROX |
|
CONE ARRANGEMENT IN FRONT OF FAN CASING |
CONICAL CASING |
|
TOWING HUCK |
BOTH SIDE OF CANNON TANK |
|
NOZZAL QNTY |
24-28 NOS |
|
WATER PRESSURE |
50 LPM |
|
BACK SAFTY GUARD |
HEAVY DUTY |
Trolley Mounted Anti Smog Gun is engineered with robust components for long service life on demanding job sites.
Most units ship within 1–5 working days from our Ghaziabad warehouse after order confirmation.
Premium motors, bearings and electrical parts from trusted brands such as Crompton, CRI and Schneider.
Empower Concrete Solution provides 12-month warranty, spare parts availability and after-sales service across India.
| Brand | Empower Concrete Solution |
|---|---|
| Origin | Made in India |
| Warranty | 12 months against manufacturing defect |

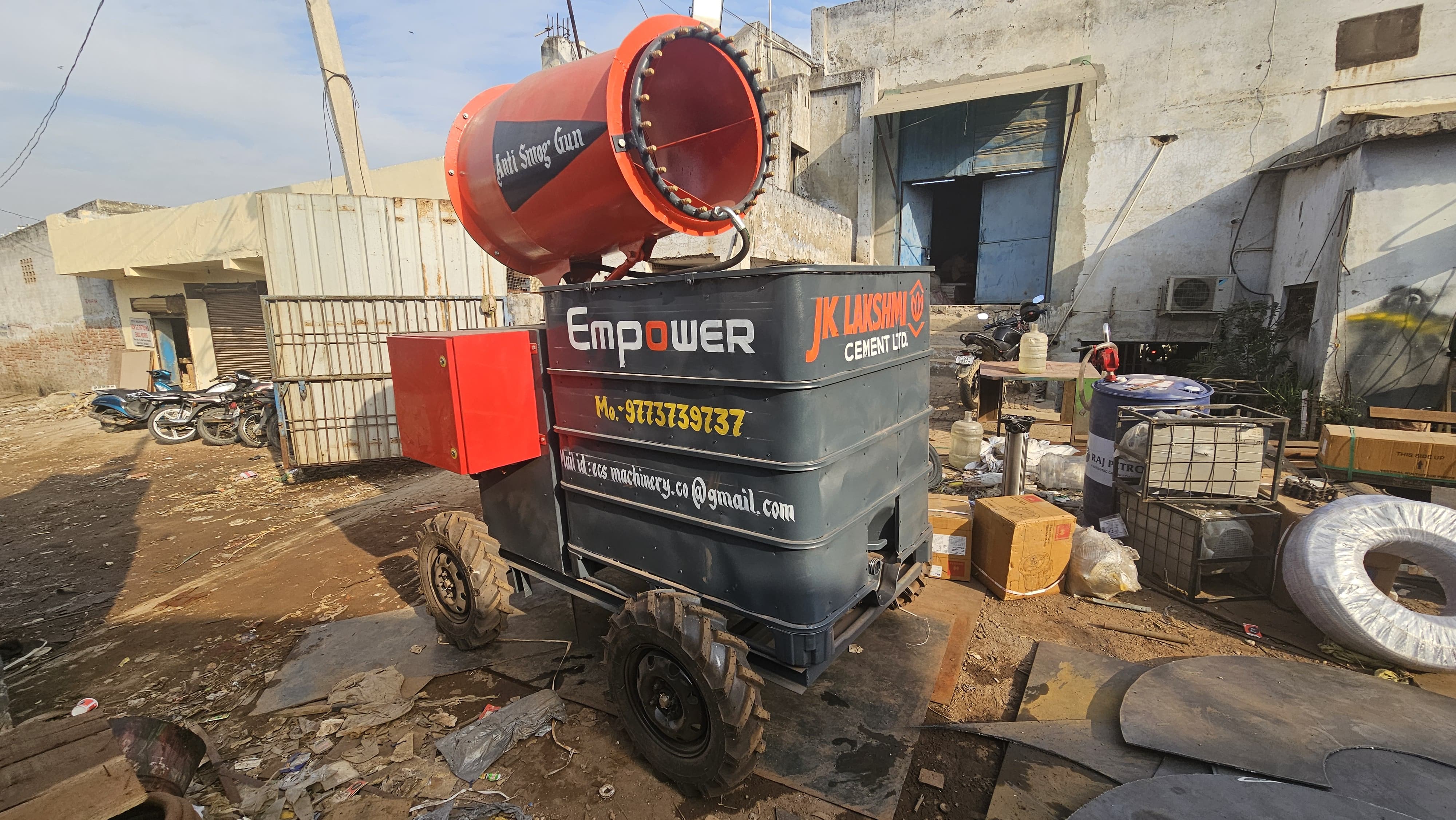

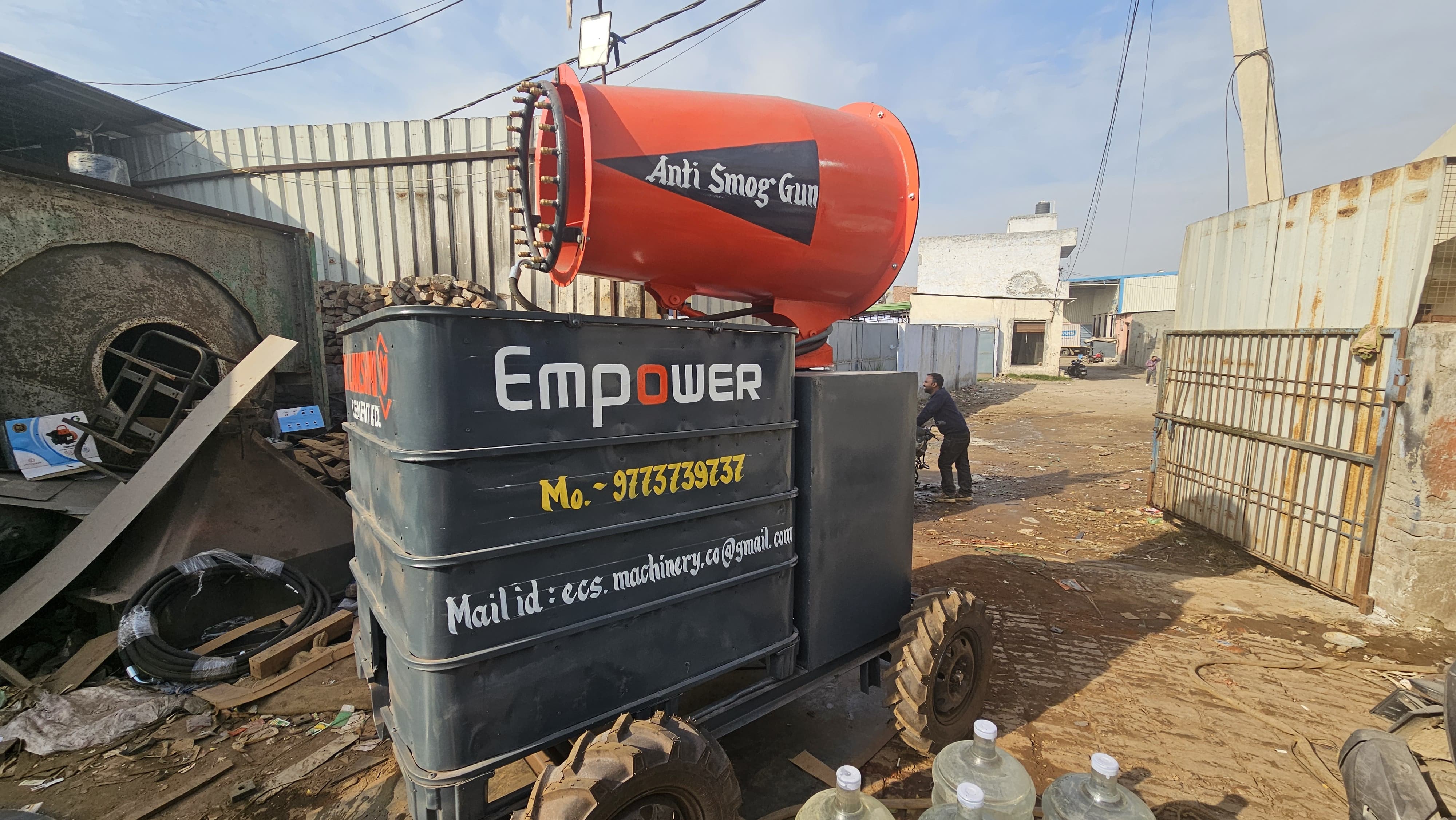

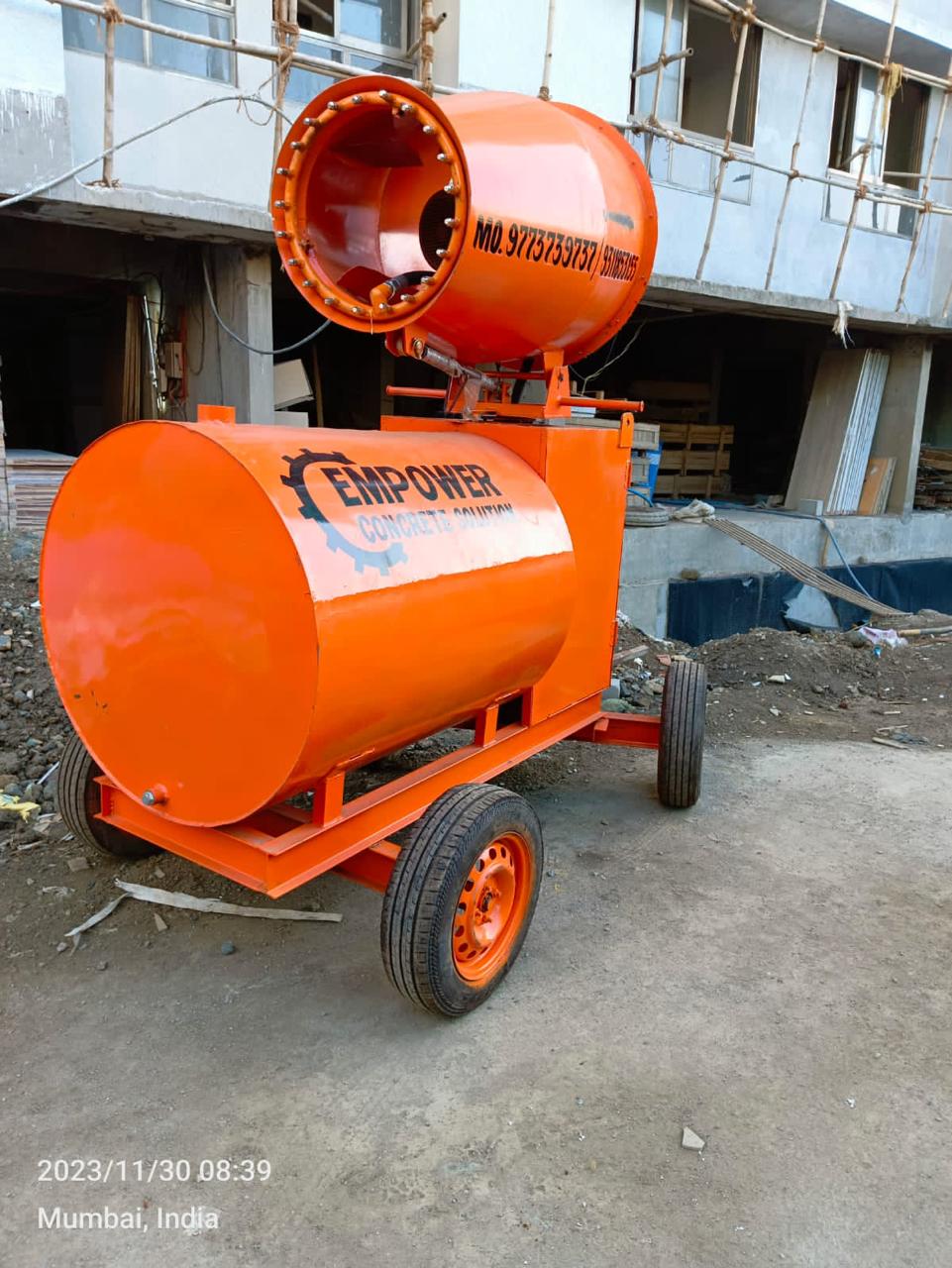

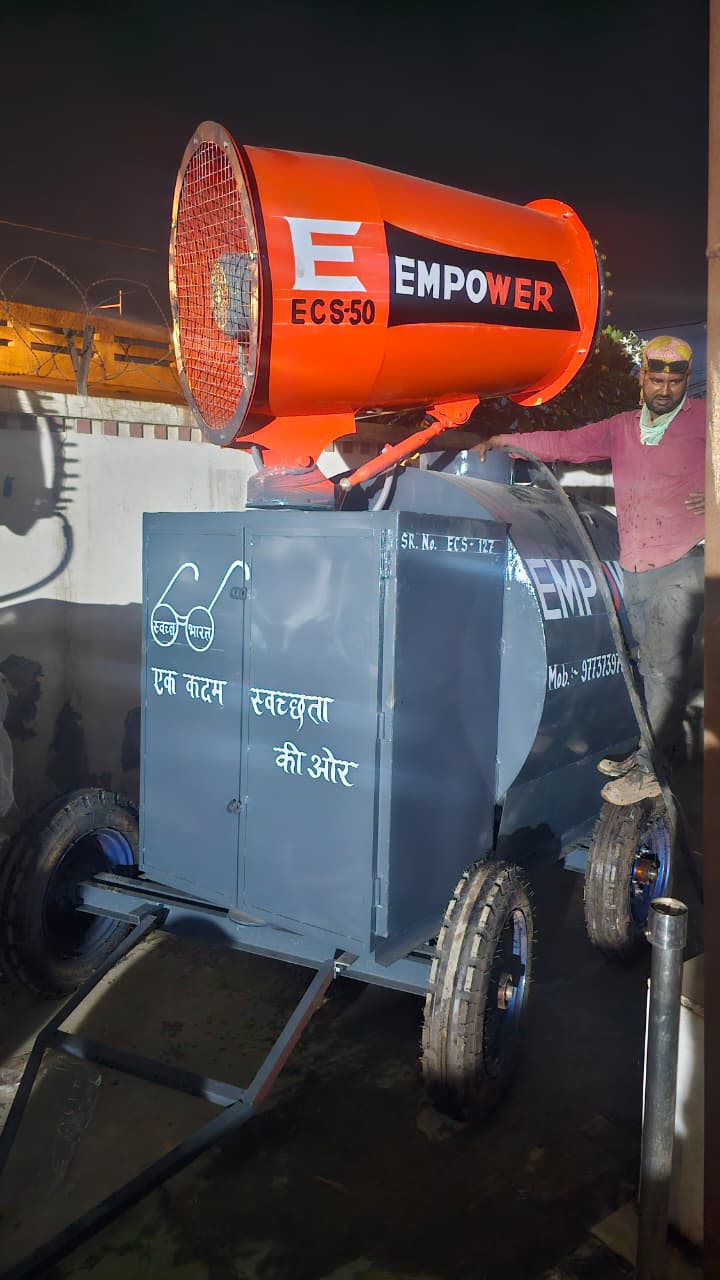

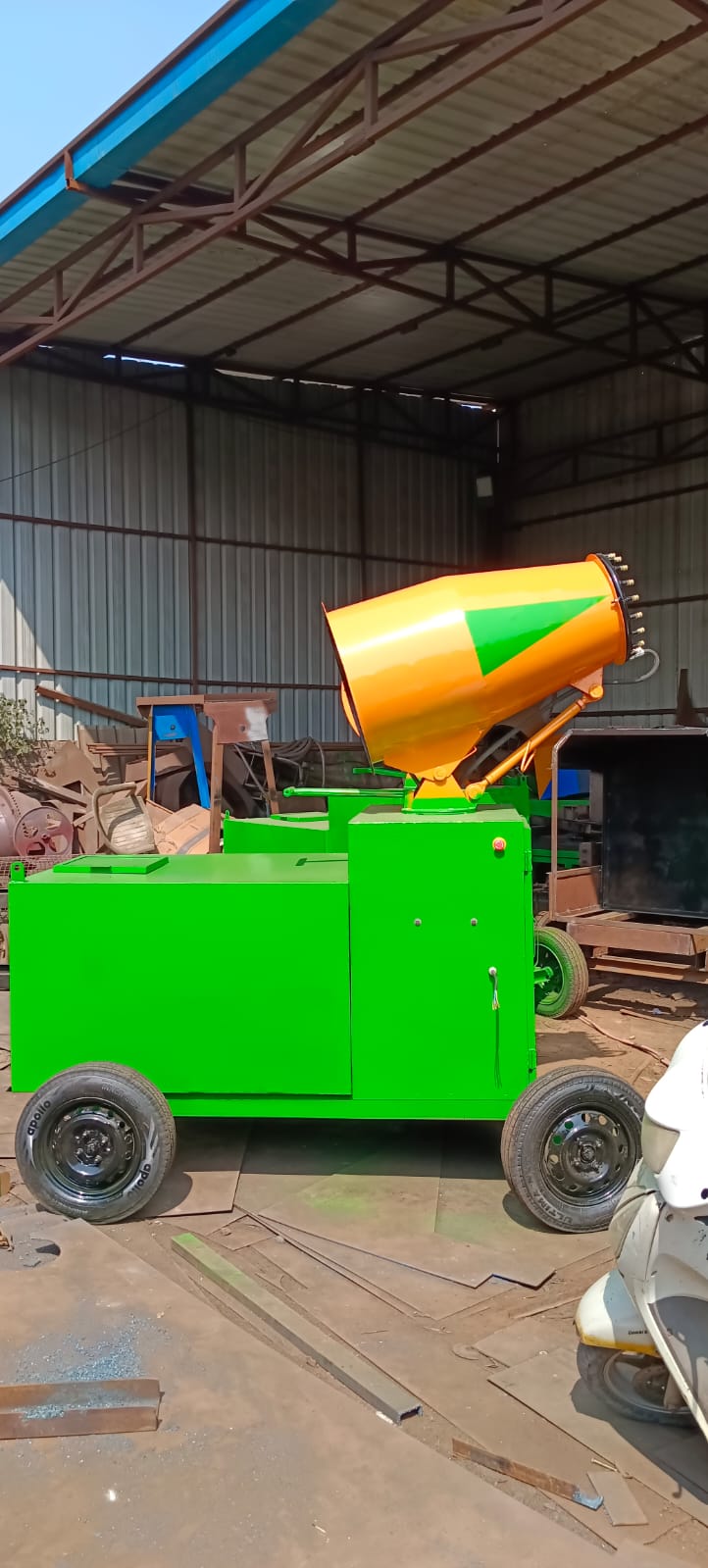

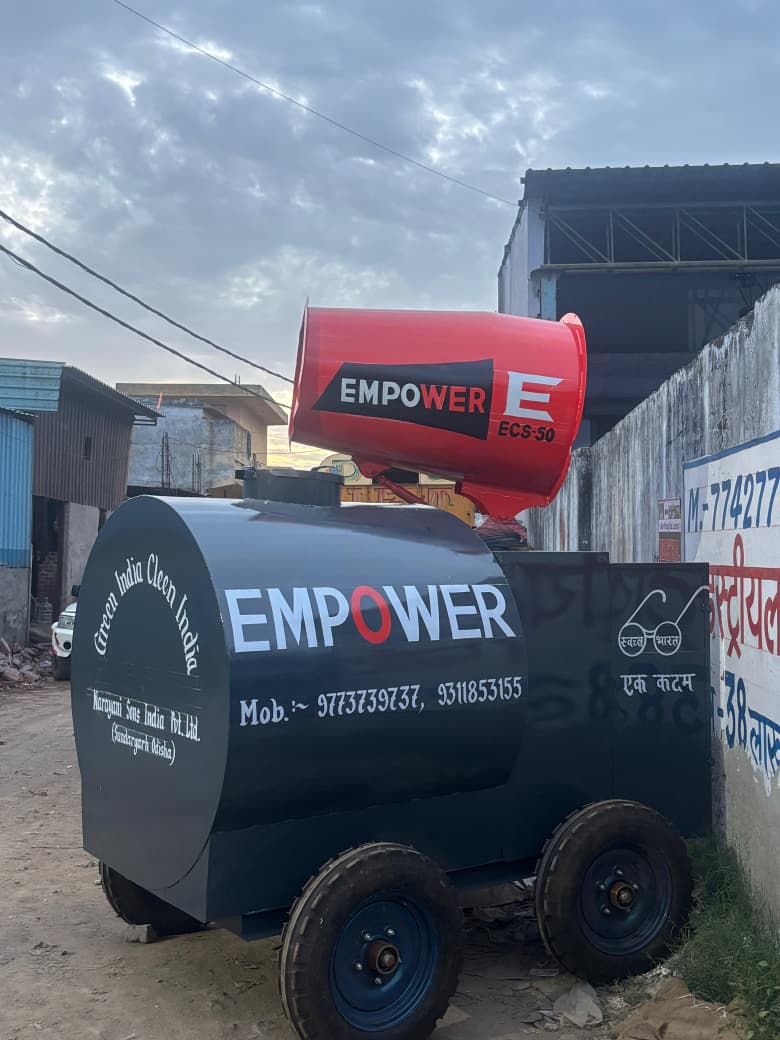

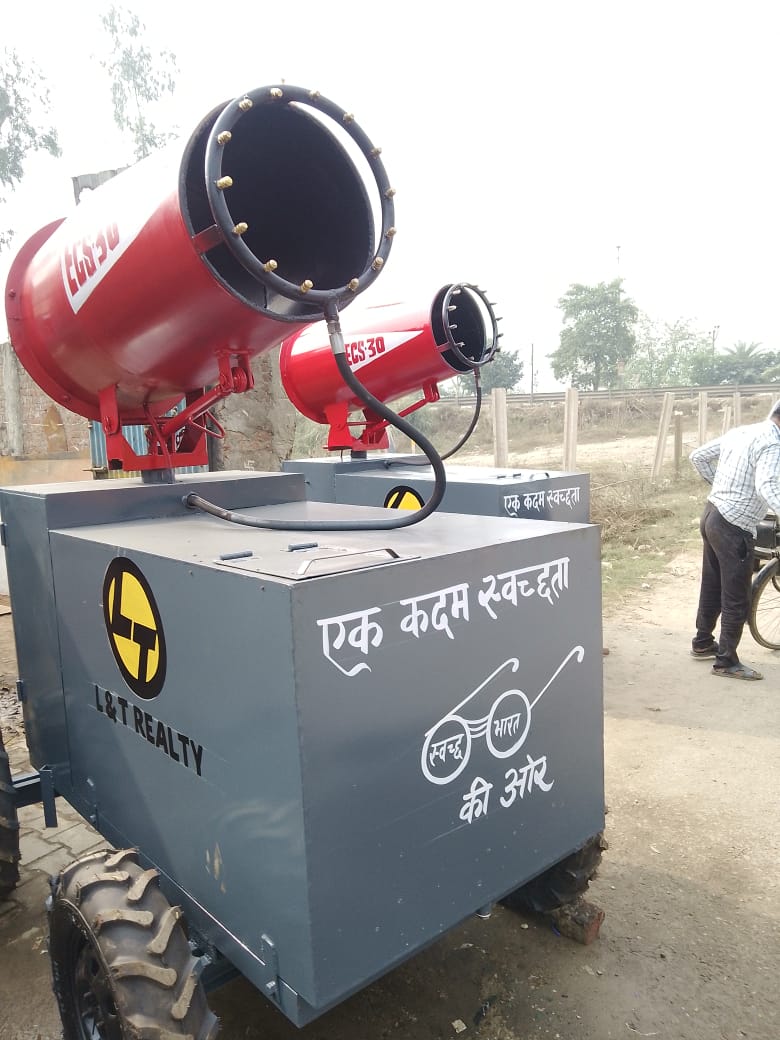

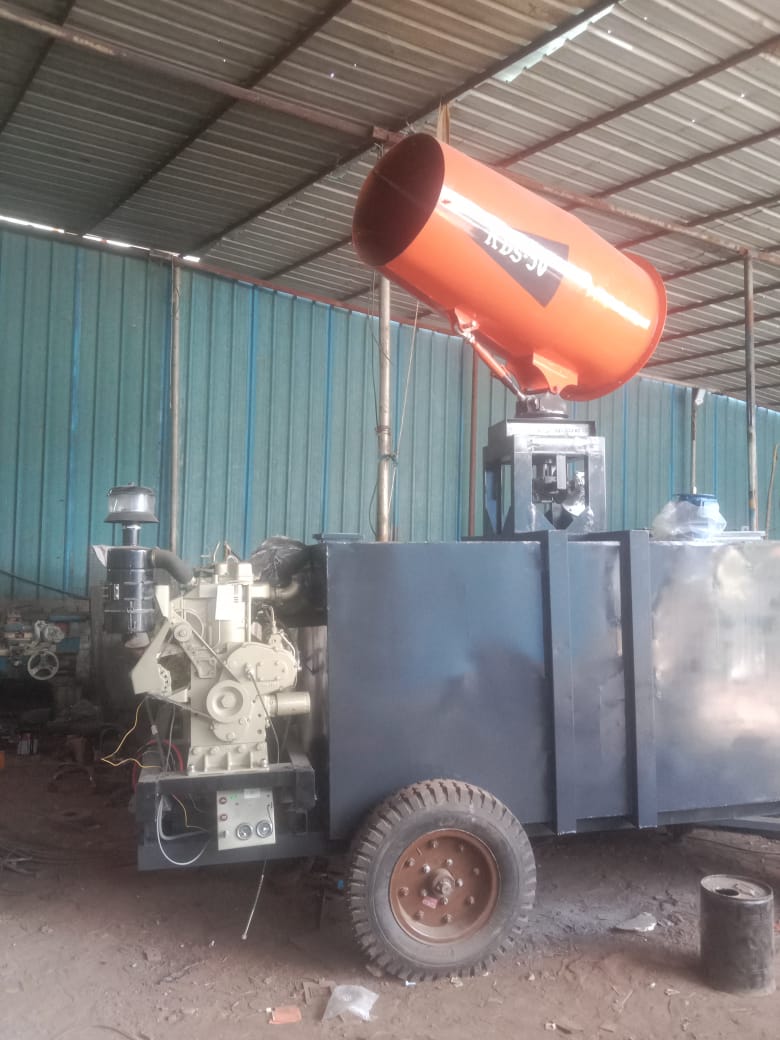

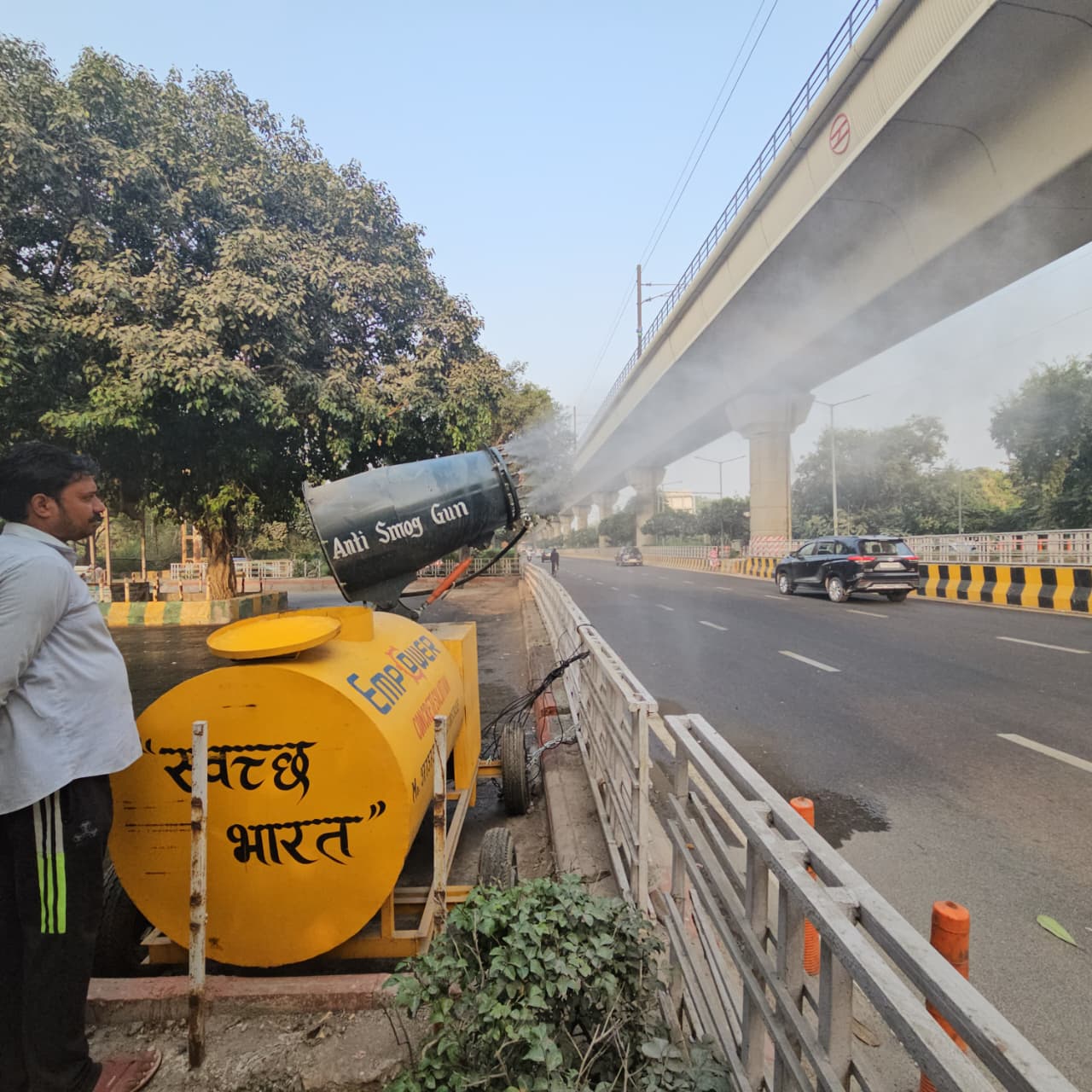

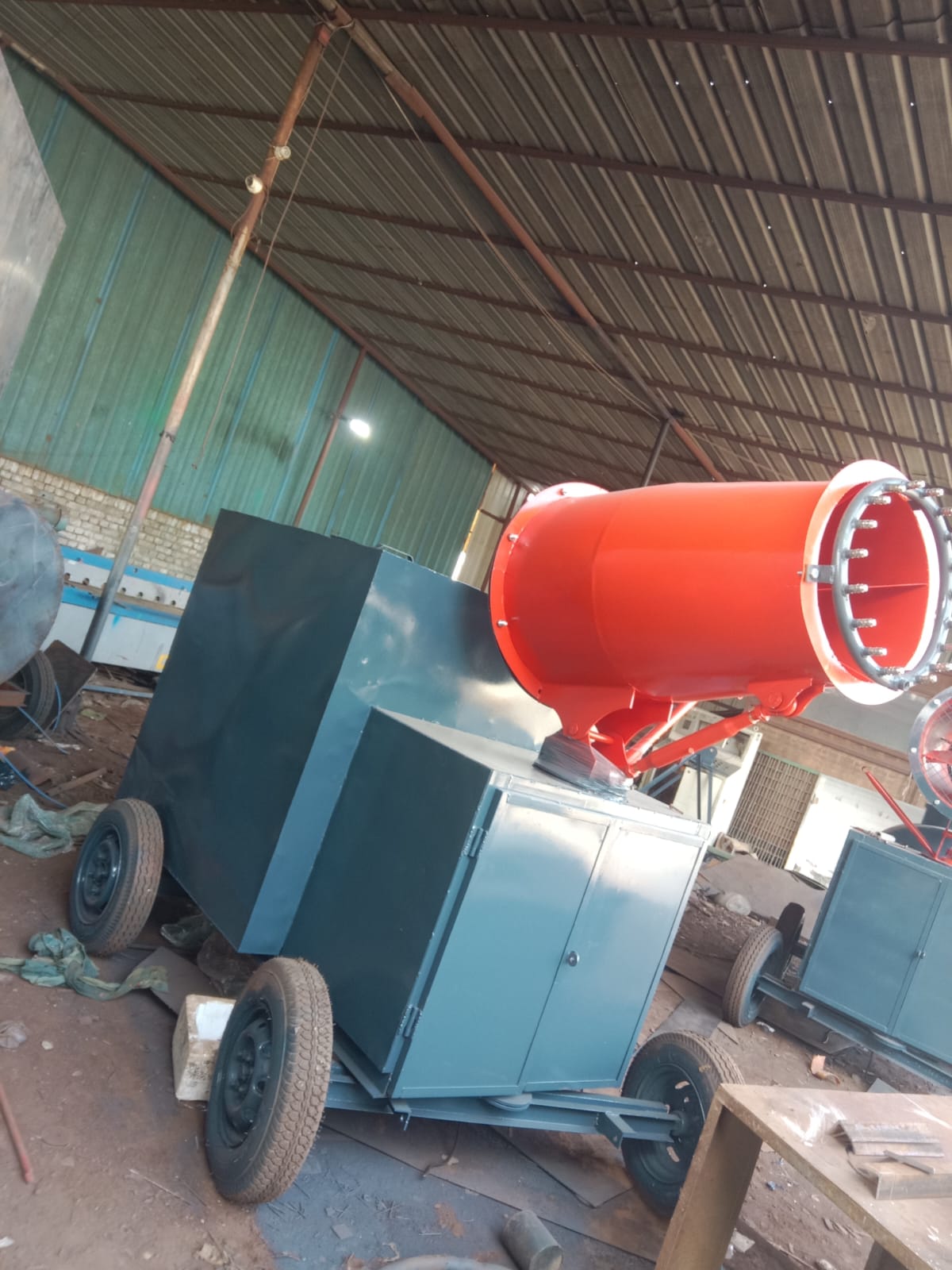

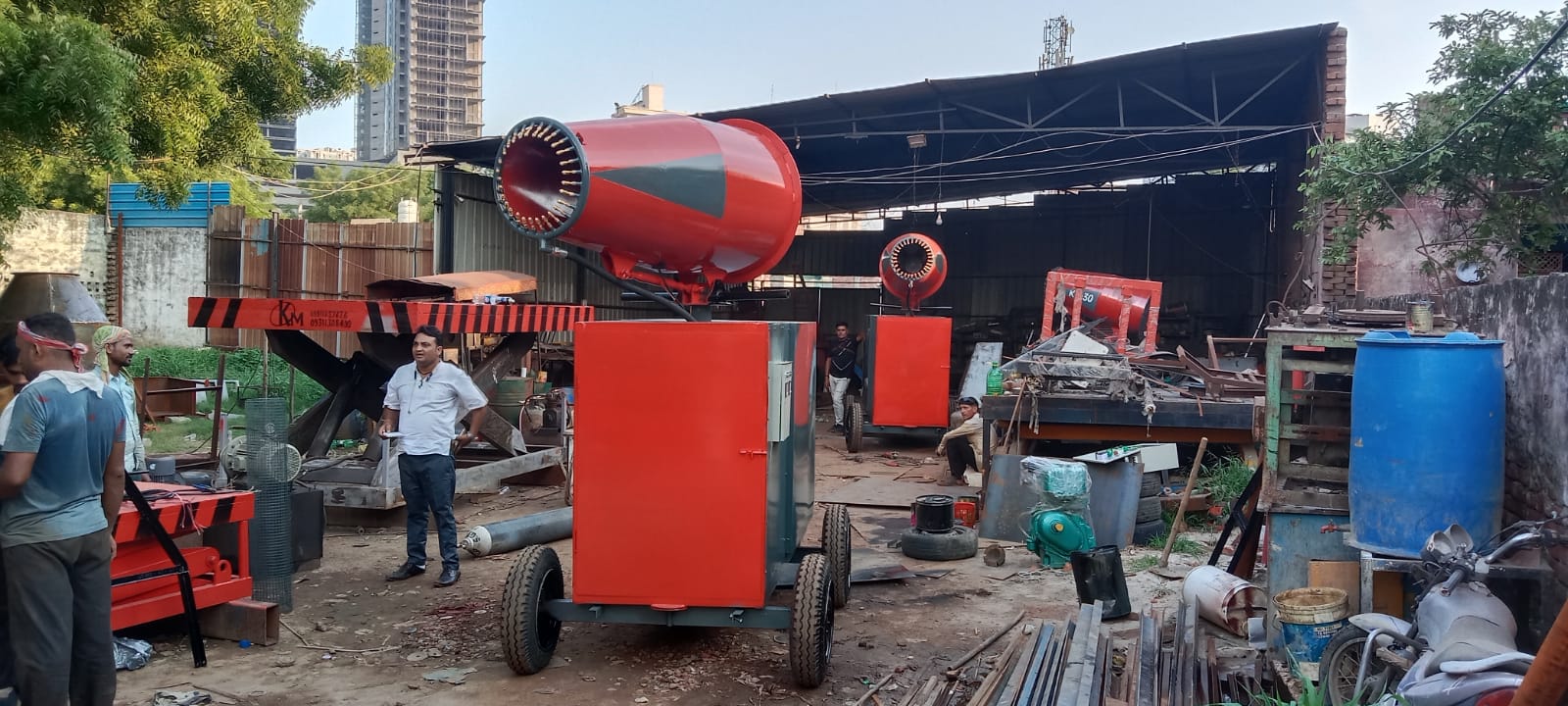

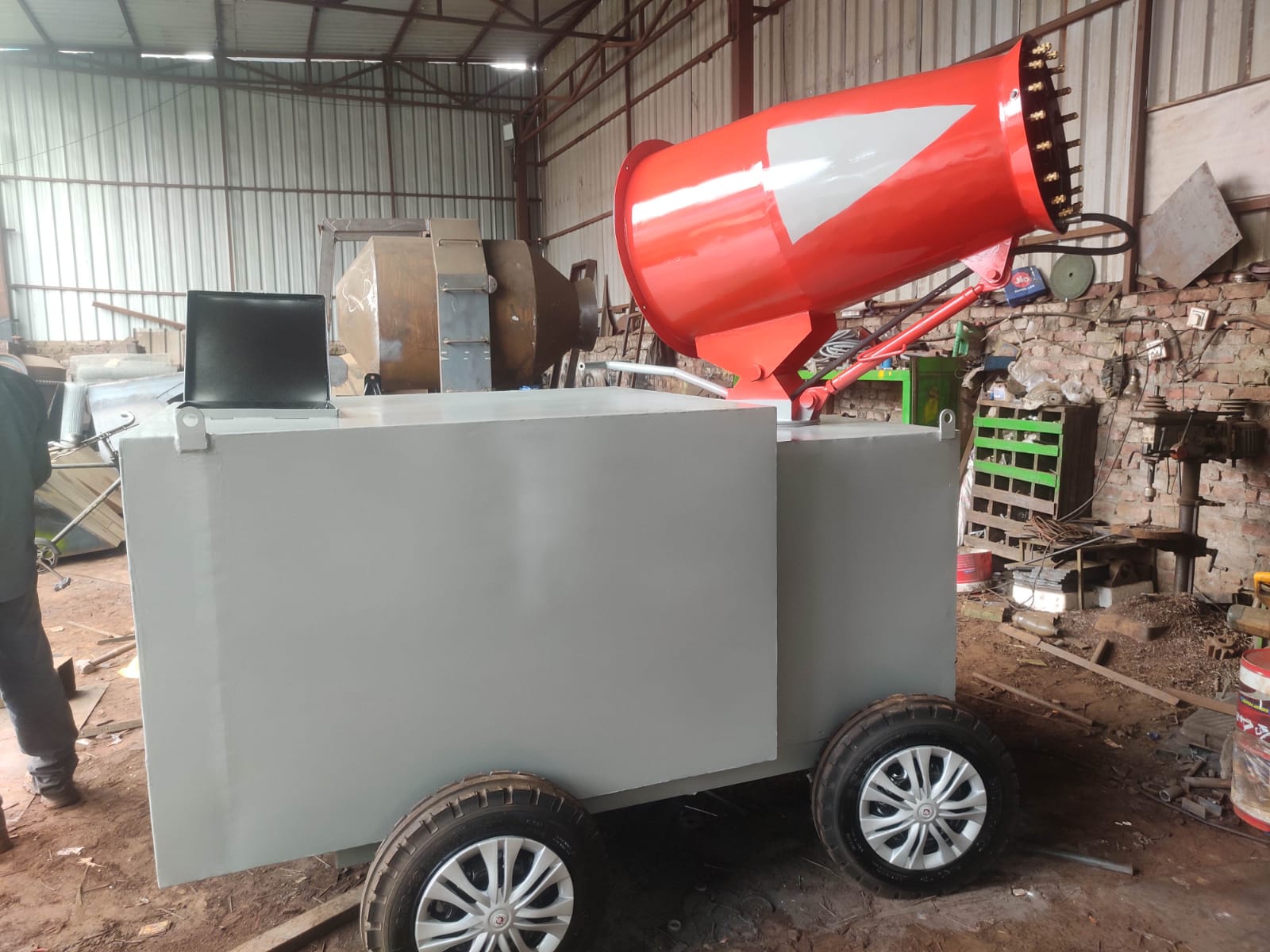

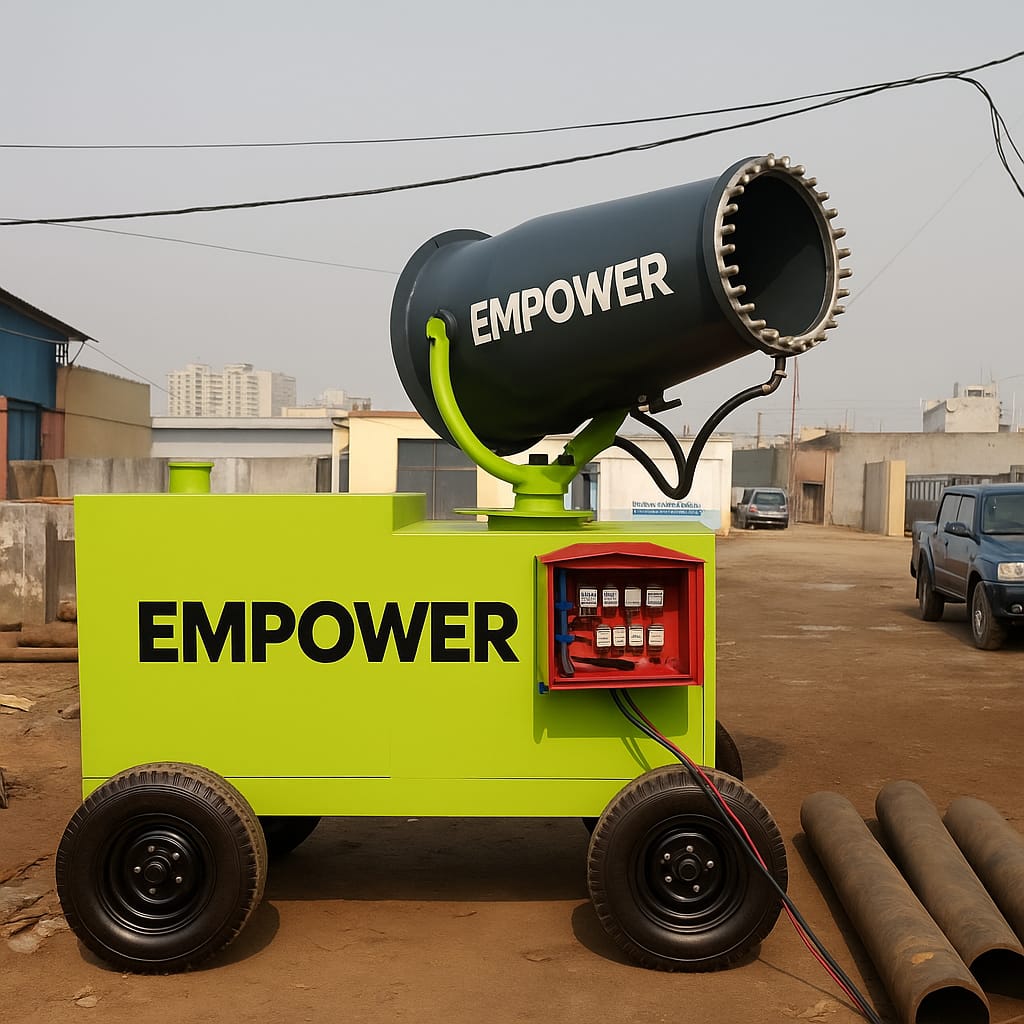

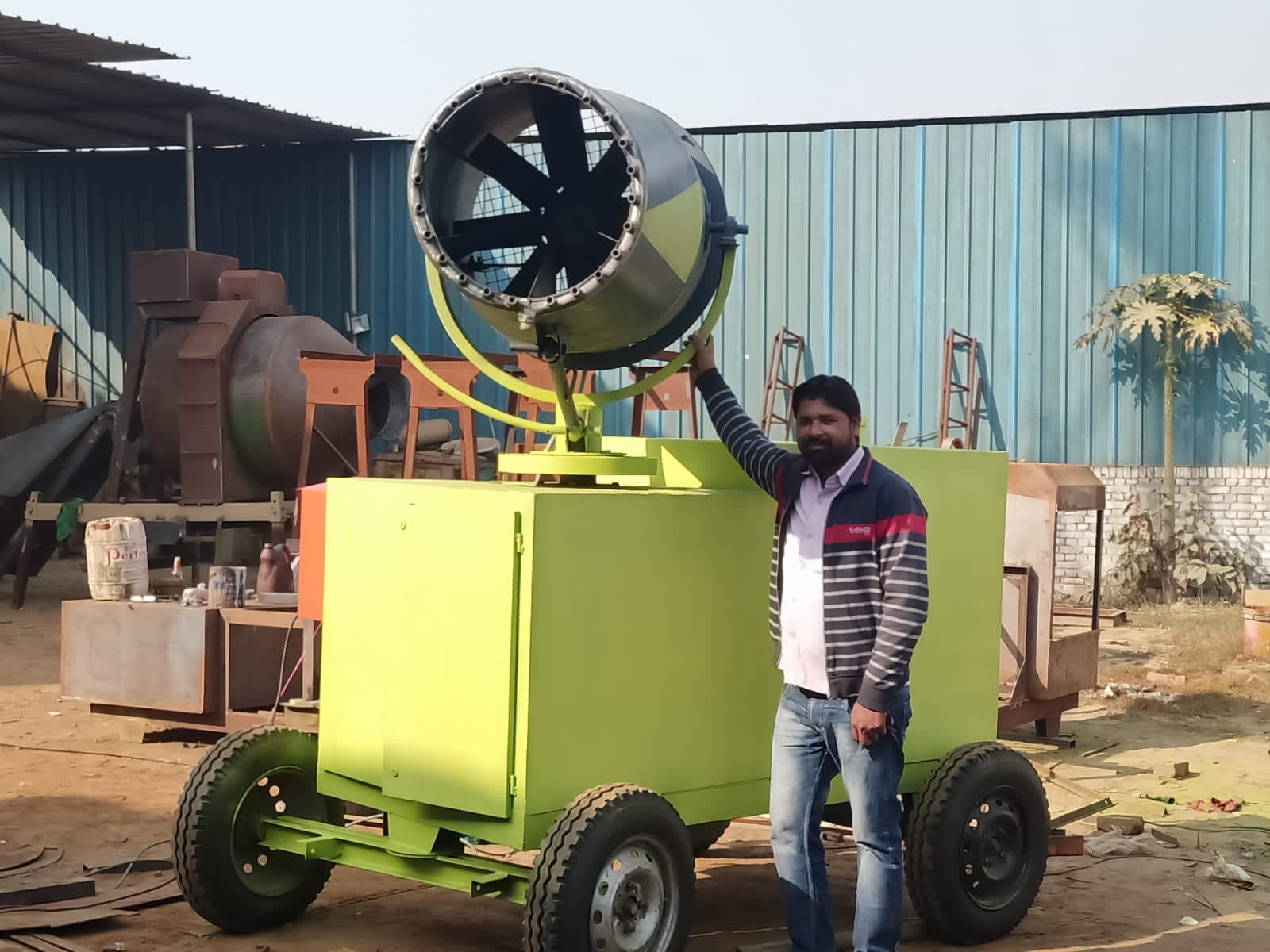

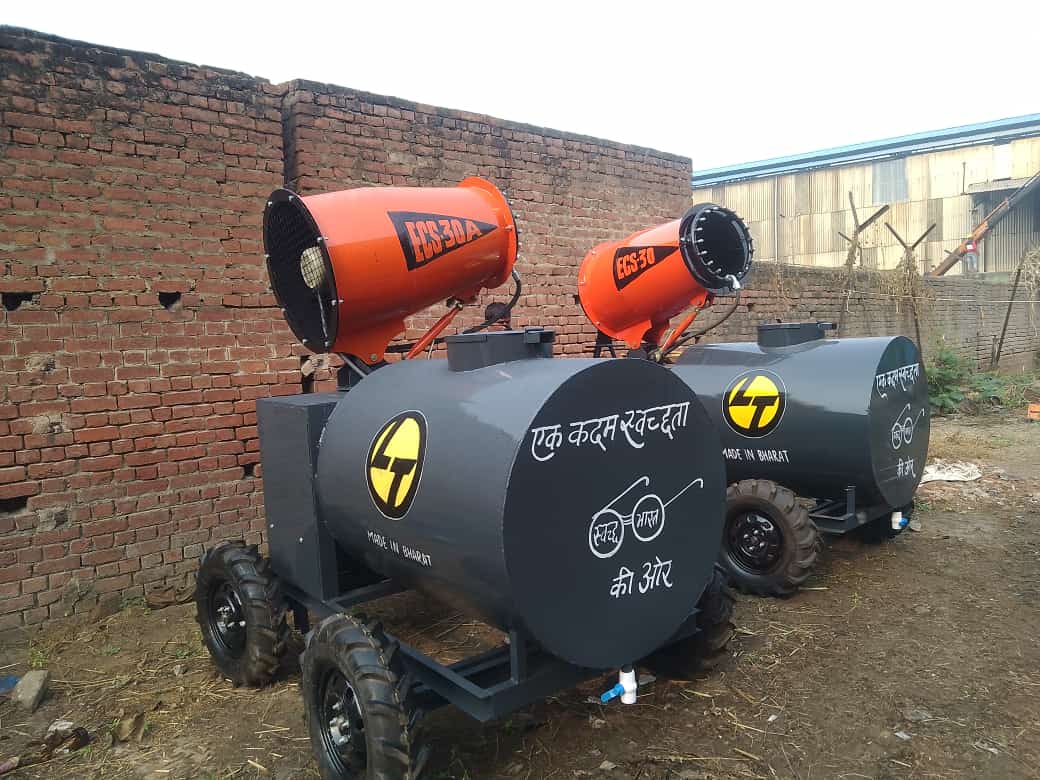

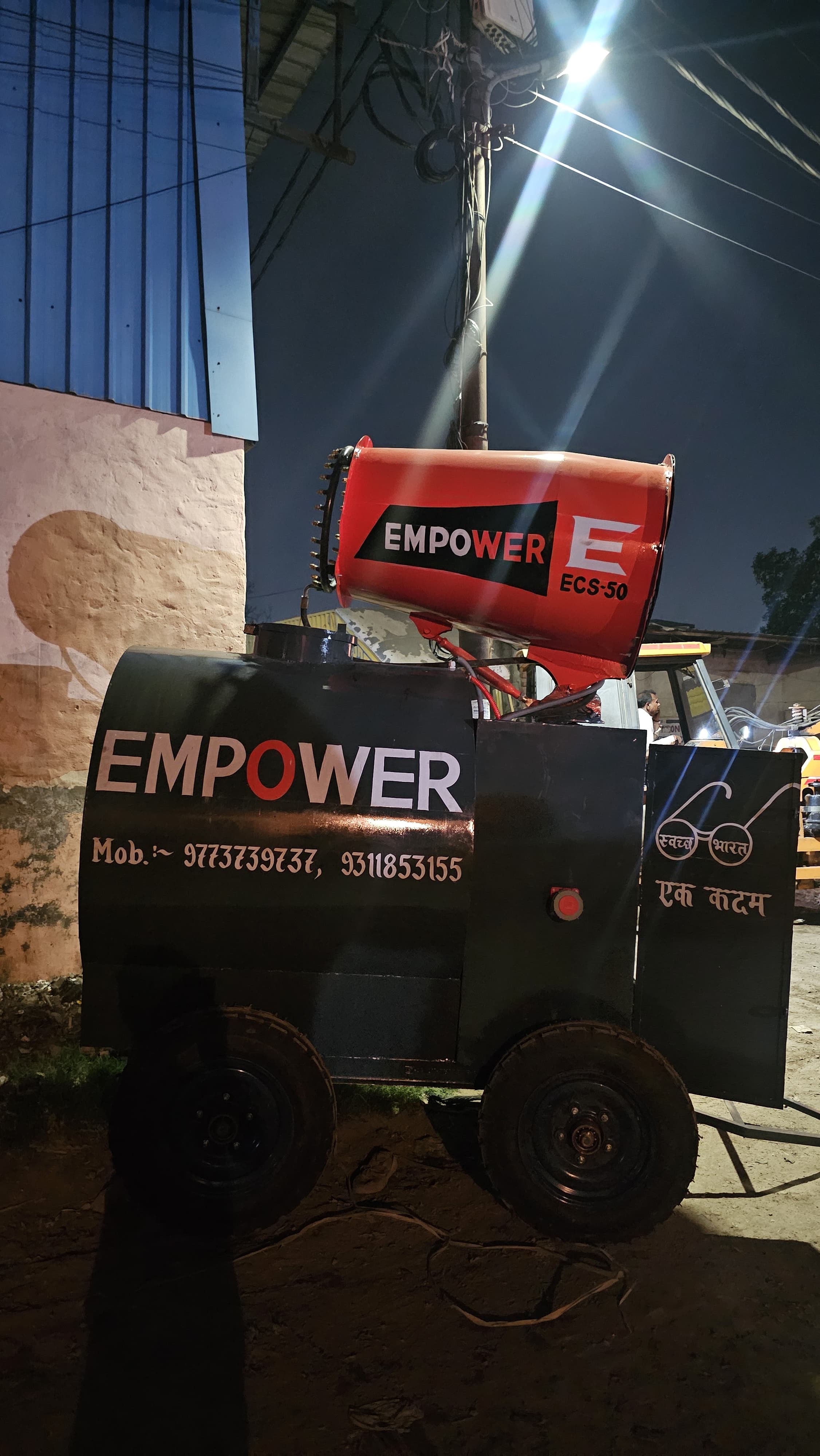

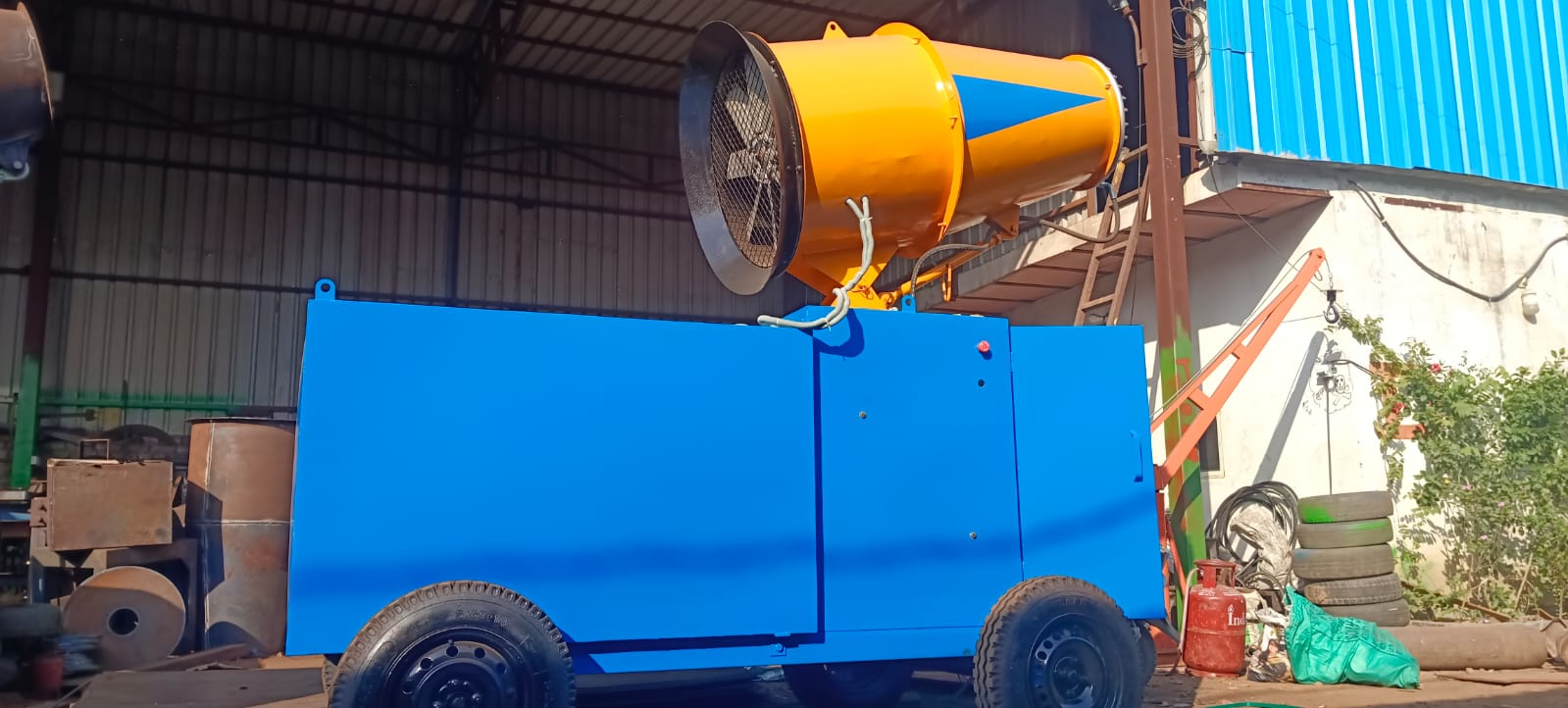

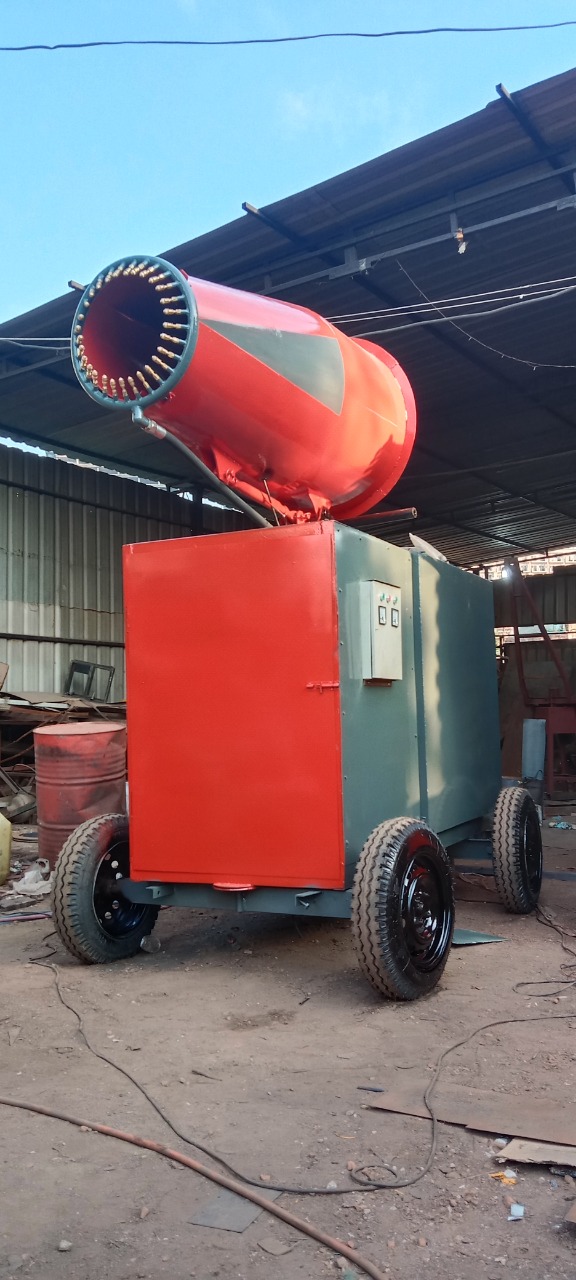

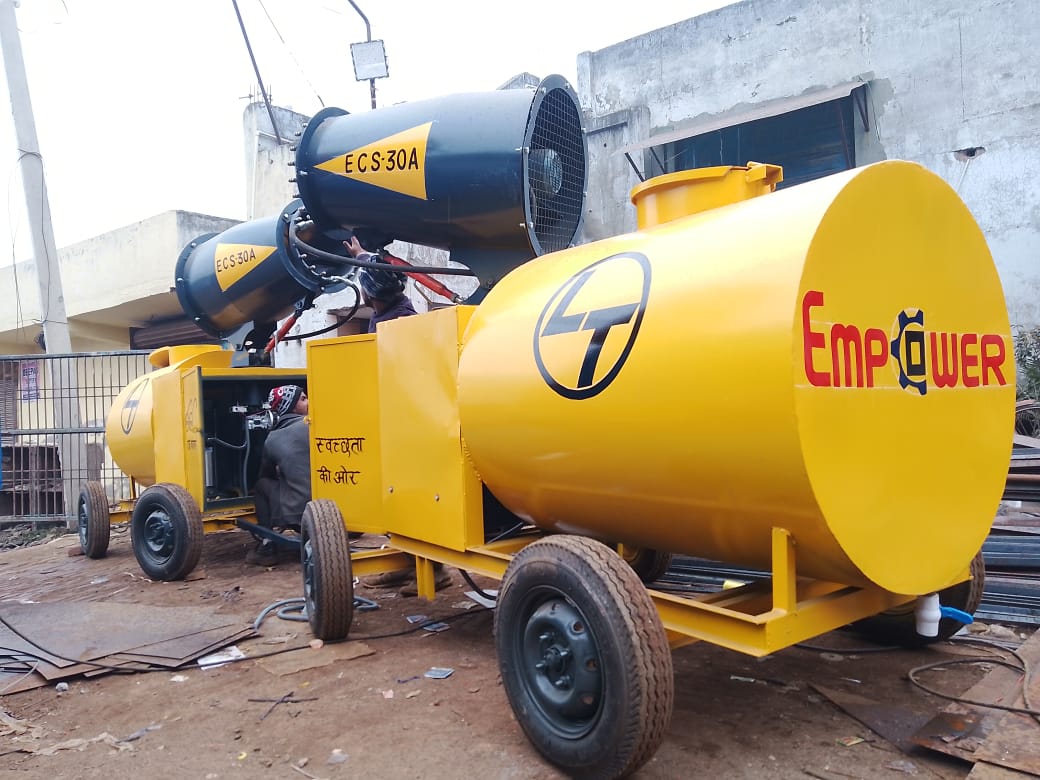

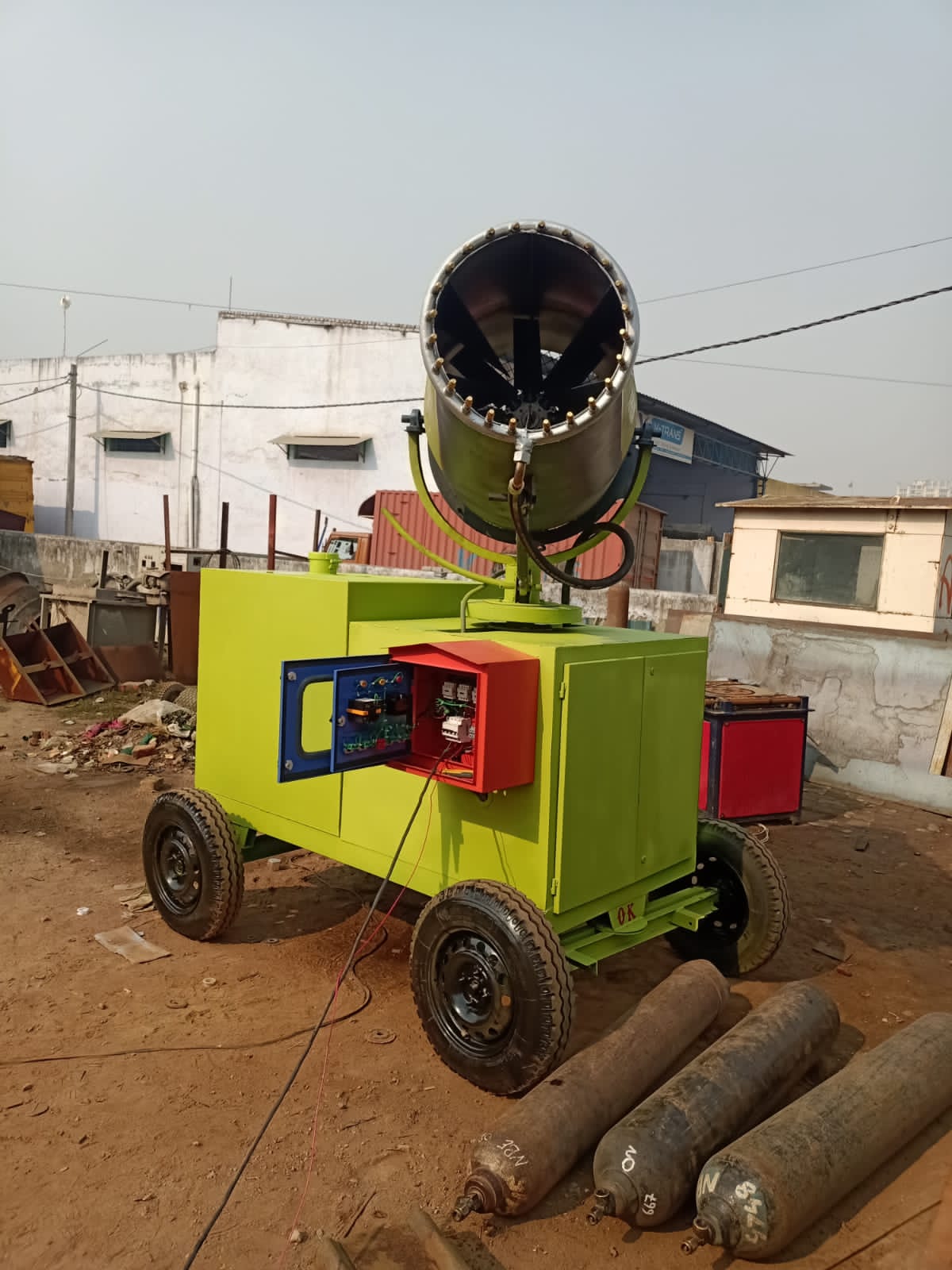

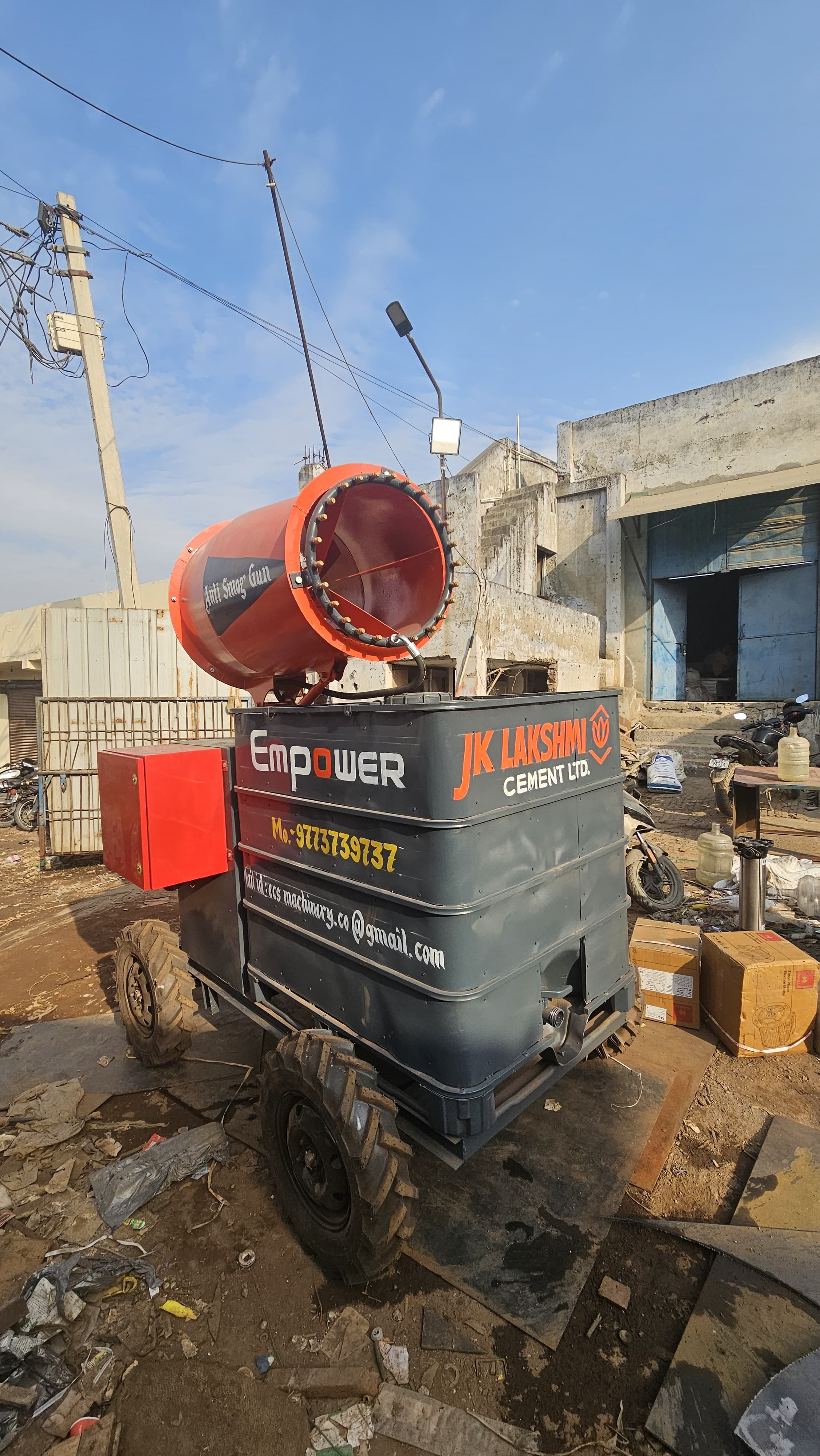

Reference photos of ANTI SMOG MACHINE 5O MTR AUTO from our Ghaziabad facility and site deployments.
